Dosing system with concrete container for biomass
Befahrbare Lösungen
Drive-on solutions
- Storage of large quantities
- Above- and below-ground solutions
- Weighing function
- Possibility of expansion
![](index.php?rex_media_type=img480&rex_media_file=cimg4884.jpg)
![](index.php?rex_media_type=img480&rex_media_file=p1030690.jpg)
![](index.php?rex_media_type=img480&rex_media_file=rampe_offen.jpg)

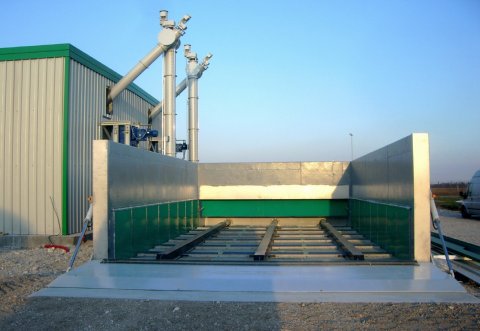

Systems based on concrete container (drag floor)
- Drag floor frame
- 8 mm wearing plate
Additional option with a pull floor system
- Weighing device: 4 measuring cells complete with measuring amplifier 4 - 20 mA
- Plastic cladding/floor: 12 mm thick plastic panel RCH 1000
Installation example:
- Length: 8.3 m / 10.3 m
- Width: 3.2 m (2 frames) / 4.8 m (3 frames)
- Height of concrete edge: 2.0 m / 2.5 m / 3.0 m
- Above-and-below-ground solution

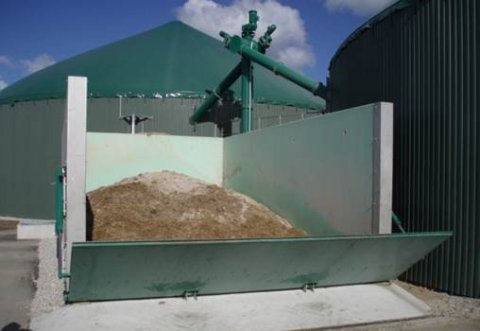

Hydraulic opening and closing ramp
- enables heavy vehicles to drive on the pull floor unit
- prevents substrate from being carried into the courtyard during
- Guided by hydraulic cylinders on both sides
![](index.php?rex_media_type=img480&rex_media_file=bild1_440.jpg)
Information and specification sheets:
Length 8.300 mm - Breite 3.200 mm
- Volume: 53 m³
- Length: 8.300 mm
- Height: 2.000 mm
- Width: 3.200 mm
- Volume: 66 m³
- Length: 8.300 mm
- Height: 2.500 mm
- Width: 3.200 mm
- Volume: 80 m³
- Length: 8.300 mm
- Height: 3.000 mm
- Width: 3.200 mm
>>> Download Dimenssion sheet
Length 9.600 mm - Breite 3.200 mm
- Volume: 62 m³
- Length: 9.600 mm
- Height: 2.000 mm
- Width: 3.200 mm
- Volume: 77 m³
- Length: 9.600 mm
- Height: 2.500 mm
- Width: 3.200 mm
- Volume: 92 m³
- Length: 9.600 mm
- Height: 3.000 mm
- Width: 3.200 mm
>>> Download Dimenssion sheet
Length 10.900 mm - Breite 3.200 mm
- Volume: 70 m³
- Length: 10.900 mm
- Height: 2.000 mm
- Width: 3.200 mm
- Volume: 87 m³
- Length: 10.900 mm
- Height: 2.500 mm
- Width: 3.200 mm
- Volume: 105 m³
- Length: 10.900 mm
- Height: 3.000 mm
- Width: 3.200 mm
>>> Download Dimenssion sheet
Length 8.300 mm - Breite 4.800 mm
- Volume: 80 m³
- Length: 8.300 mm
- Height: 2.000 mm
- Width: 4.800 mm
- Volume: 100 m³
- Length: 8.300 mm
- Height: 2.500 mm
- Width: 4.800 mm
- Volume: 120 m³
- Length: 8.300 mm
- Height: 3.000 mm
- Width: 4.800 mm
>>> Download Dimenssion sheet
Length 9.600 mm - Breite 4.800 mm
- Volume: 92 m³
- Length: 9.600 mm
- Height: 2.000 mm
- Width: 4.800 mm
- Volume: 115 m³
- Length: 9.600 mm
- Height: 2.500 mm
- Width: 4.800 mm
- Volume: 138 m³
- Length: 9.600 mm
- Height: 3.000 mm
- Width: 4.800 mm
>>> Download Dimenssion sheet
Length 10.900 mm - Breite 4.800 mm
- Volume: 105 m³
- Length: 10.900 mm
- Height: 2.000 mm
- Width: 4.800 mm
- Volume: 131 m³
- Length: 10.900 mm
- Height: 2.500 mm
- Width: 4.800 mm
- Volume: 157 m³
- Length: 10.900 mm
- Height: 3.000 mm
- Width: 4.800 mm
>>> Download Dimenssion sheet
